100% Made in Denmark

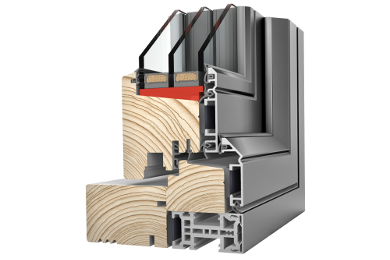

TOP INSULATION WITH COMPOSITE REBATE
The profile of the frame rebate is made of a fibre-reinforced composite material that creates a highly insulated product without the risk of rot or fungus.
BURGLAR-PROOF
All windows and patio doors are delivered with hardened restrictor hooks and adjustable secure strike plates as standard. KASTRUP ENERGY is certified to PAS24.
DURABLE, HIGH QUALITY MATERIALS
No dark marks and virtually knot-free pinewood. Extra resistant powder-coated aluminium. A fibre-reinforced composite frame ensures strength.
HANDLE-OPERATED BRAKE IS STANDARD
Side hung windows and patio doors include a handle-operated brake that secures the casement’s position during normal wind conditions. Top guided and side guided windows include a friction brake.
THE MOST SLENDER WINDOW PROFILE
42mm profile height on all fixed frame windows with 48mm glass. Perfect for large glass areas in modern buildings.
SWAN NECK TRANSOM
Instead of choosing the traditional internal profiled transom for windows in our design style CLASSIC, you can also choose an internal swan neck profiled transom in the design style CLASSIC.
Energy performance
With standard triple glazing
Uw
0,78 W/m²K
Gw
0.43
With ECLAZ triple glazing
Uw
0,75 W/m²K
Gw
0.43
With ECLAZ as standard double glazing
Uw
1,29 W/m²K
Gw
0.54
Technical data
Dimensions
Standard frame depth
120mm
Possible frame depth
140, 160, 180, mm
Frame/casement height
86mm
Frame height
42mm
Post
58mm
Sealants
2, 3 (possible)
Glazing bars
24, 44, 58mm
Glass-dividing glazing bar
58mm
Opening types
Fixed
Top guided
Side guided
Side hung
Reversible
Tilt and turn
Patio door
Double patio door
Options
Trickle vent
Groove cut
Restrictor
Sheet metal bending
Night vent
Standard
Visible drainage
Lockable handles
Cup handles for patio doors
Coloured hinges
Design styles
Standard design style MODERN with triple glazing
Standard design style MODERN with double glazing.
Inward opening tilt and turn windows in design style MODERN. Inward- and outward opening windows have the same frame height and can be combined in the same element.
Design style CLASSIC with triple glazing comes with an internal profiling.
Design style CLASSIC with double glazing comes with an internal profiling and a rounded putty look on the outside.
Inward opening tilt and turn windows in design style CLASSIC comes with an internal profiling on the frame and can be combined with outward opening windows in the same element.
Kastrup Energy with an oak sash
You can combine an oak sash with the benefits from the standard ENERGY series with the possibility of one design combination of an interior pinewood frame, an oak sash and an exterior aluminium frame. Instead of oak you can also choose mahogany. The glazing bead is as standard always hardwood, but you can also choose the bottom glazing bead in aluminium. The thermal performance is UW = 0.89 W/m2K.
Patio door design
The outward opening wood/aluminium patio door has a casement height of only 74mm. You get more light into your room and you don’t interrupt the facade appearance when combining patio doors with windows. Patio doors that open inwards have a casement height of 90mm.
With an incredibly slim frame height of just 55 mm, our new wood/alum door lite sets a new standard in design for patio doors. The outward door system is delivered with our thoroughly tested windows brackets and is also available as a double patio door.
Patio door thresholds
42mm pinewood threshold with aluminium step protection is standard for patio doors that open outwards and is not possible for patio doors that open inwards.
25mm aluminium threshold is standard for patio doors that open inwards and is also possible for patio doors that open outwards.
15mm low composite/aluminium threshold is an alternative for all types of patio doors.
43mm hardwood threshold in oak or mahogany is an alternative for all types of patio doors.
Inward opening tilt and turn patio doors come with a 75mm frame threshold as standard, but you can also choose a 25mm low aluminium threshold.
Reinforcement profiles for easier fitting
Depending on the size and type of opening, Kastrup Windows fits reinforcement profiles on the elements. This lends maximum stability between the wood and the composite, thus making fitting easy.
Handles
STANDARD DOOR HANDLE: TOKYO
Aluminium and black
Stockholm
Aluminium
