100% Made in Denmark

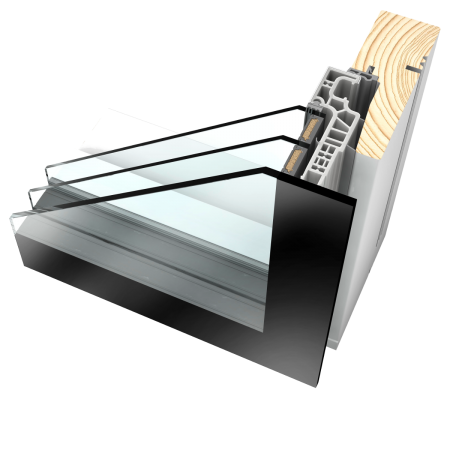

A visionary window clad solely with glass on the outside with one of the best energy values in the industry.
HANDLE-OPERATED BRAKE IS STANDARD
Side-hung windows and patio doors include a handle-operated brake that secures the casement’s position during normal wind conditions. Top guided and side guided windows include a friction brake.
DESIGNER HANDLE
The exclusive handle is easy to clean behind. There is also the option of a lockable handle with a discreet key lock that matches the design.
DURABLE, HIGH QUALITY MATERIALS
No dark marks and virtually knot-free pinewood. A fibre-reinforced composite sash to ensure stability.
HIGH LEVEL OF BURGLAR RESISTANCE
Espangnolette with multiple mushroom bolts and fully glued glass as standard security package.
TIGHTNESS IN A LEAGUE OF ITS OWN
Three seals and a frame seal that is fitted in a groove, so it does not retract over time. The fibre-reinforced composite sash means you have no thermal bridges. This prevents condensation problems.
COLOURED GLASS
It is possible to get the INVI VETRO in the most common RAL colours.
Energy performance
With standard triple glazing
Uw
0,77 W/m²K
Gw
0.47
Technical data
Dimensions
Standard frame depth
140mm
Possible frame depth
160, 175mm
Frame/casement height
56mm
Frame height
42mm
Post
92mm
Sealants
3
Opening types
Fixed
Top guided
Side guided
Side hung
Patio door
Double patio door
Options
Trickle vent
Groove cut
Restrictor
Sheet metal bending
Lockable handles
Coloured composite sash
Rebate matches exterior colour
Patio door thresholds

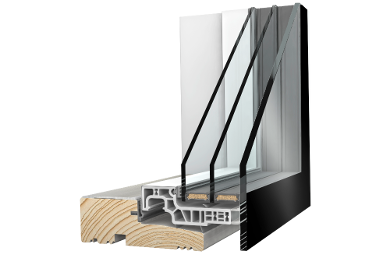

42mm pinewood threshold with aluminium step protection is standard for all INVI patio doors.

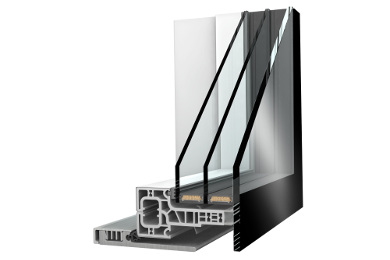

15mm low composite/aluminium threshold is an alternative for all INVI patio doors.
Lockable handle
Lockable INVI handle for windows and patio doors with discreet key lock that matches the design.
Handles
STANDARD DOOR HANDLE: TOKYO
Aluminium and black
STOCKHOLM
Aluminium
